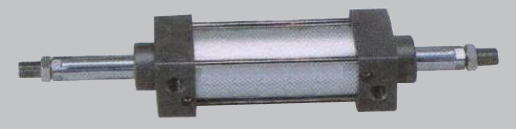

安装尺寸：
| 缸径 | d | KK | A | WF | VF | K | H | I | BE | D | L |
| 20 | 8 | M8*1.25 | 20 | 24 | 16 | 14 | 31 | 16 | M22*1.5 | 32 | 119 |
| 25 | 10 | M10*1.25 | 22 | 28 | 18 | 14.5 | 35 | 18 | M22*1.5 | 38 | 132 |
| 32 | 13 | M10*1.25 | 22 | 30 | 20 | 15 | 40 | 20 | M24*2 | 40 | 142 |
| 40 | 14 | M12*1.25 | 24 | 32 | 22 | 15 | 42 | 22 | M30*2 | 55 | 150 |
| 50 | 20 | M16*1.5 | 35 | 35 | 25 | 15 | 46 | 25 | M36*2 | 65 | 168 |
安装尺寸图：
