安装尺寸：
| 型号 | A | B | C | D | E | F | G | H | M |
| ZH40-40 | 115.5 | 51 | 11 | 90 | 2-M6 | 51 | 38 | Z1/8 | 20 |
| ZH60-100 | 235 | 94 | 14 | 192 | 4-M6 | 72 | 60 | Z1/4 | 20 |
| ZH80-150 | 301.5 | 112.5 | 20 | 242 | 4-M6 | 92 | 80 | Z3/8 | 20 |
| ZH100-150 | 282 | 139 | 20 | 242 | 4-M8 | 116 | 100 | Z3/8 | 20 |
| ZH150-250 | 444 | 206 | 21 | 380 | 4-M10 | 170 | 150 | Z1/2 | 35 |
| ZH200-300 | 502 | 257 | 23 | 430 | 6-M10 | 222 | 195 | Z1/2 | 35 |

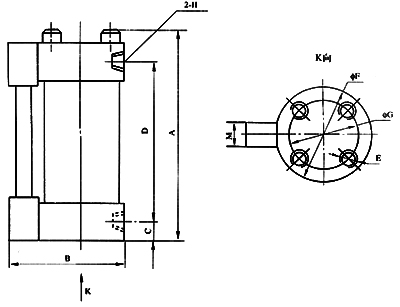

安装尺寸图：
