安装尺寸：缸内径B活塞杆内螺纹dd2d3d4E1E2KHP3230M10*116305.5101881355434030M10*116305.5101881560485038M12*1.2520406···
安装尺寸：
| 缸内径 | B | 活塞杆内螺纹 | d | d2 | d3 | d4 | E1 | E2 | K | H | P |
| 32 | 30 | M10*1 | 16 | 30 | 5.5 | 10 | 18 | 8 | 13 | 55 | 43 |
| 40 | 30 | M10*1 | 16 | 30 | 5.5 | 10 | 18 | 8 | 15 | 60 | 48 |
| 50 | 38 | M12*1.25 | 20 | 40 | 6.5 | 12 | 20 | 10 | 15 | 74 | 60 |
| 63 | 38 | M12*1.25 | 20 | 40 | 6.5 | 12 | 20 | 10 | 20 | 85 | 68 |

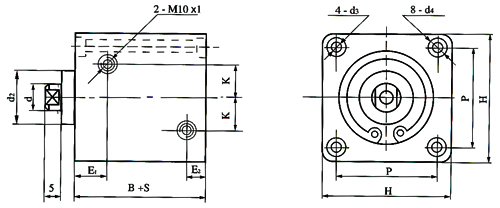

安装尺寸图：
