安装尺寸：缸径40506380100125140150160180200224250B型KKM20*1.5M24*1.5M30*1.5M39*1.5M48*1.5M64*2M72*2M76*2M80*···
安装尺寸：
| 缸径 | 40 | 50 | 63 | 80 | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 224 | 250 | |
| B 型 | KK | M20 *1.5 | M24 *1.5 | M30 *1.5 | M39 *1.5 | M48 *1.5 | M64 *2 | M72 *2 | M76 *2 | M80 *2 | M95 *2 | M100 *2 | M120 *2 | M130 *2 |
| A | 30 | 35 | 45 | 60 | 75 | 95 | 110 | 115 | 120 | 140 | 150 | 180 | 195 | |
| MM | 22 | 28 | 36 | 45 | 56 | 71 | 80 | 85 | 90 | 100 | 112 | 125 | 140 | |
| C 型 | KK | M16 *1.5 | M20 *1.5 | M24 *1.5 | M30 *1.5 | M39 *1.5 | M48 *1.5 | M56 *2 | M60 *2 | M64 *2 | M72 *2 | M80 *2 | M95 *2 | M100 *2 |
| A | 25 | 30 | 35 | 45 | 60 | 75 | 80 | 85 | 95 | 110 | 120 | 140 | 150 | |
| MM | 18 | 22 | 28 | 36 | 45 | 56 | 63 | 67 | 71 | 80 | 90 | 100 | 112 | |
| BB | 11 | 11 | 13 | 16 | 18 | 21 | 22 | 25 | 25 | 27 | 29 | 34 | 37 | |
| DD | M10 *1.25 | M10 *1.25 | M12 *1.5 | M16 *1.5 | M18 *1.5 | M22 *1.5 | M24 *1.5 | M27 *1.5 | M27 *1.5 | M30 *1.5 | M33 *1.5 | M39 *1.5 | M42 *1.5 | |
| E | 65 | 75 | 90 | 110 | 135 | 165 | 185 | 196 | 210 | 235 | 262 | 292 | 325 | |
| EE | ZG3/8" | ZG1/2" | ZG3/4" | G1" | ZG1(1/4)" | ZG1(1/2)" | ZG2" | |||||||
| L | 141 | 155 | 163 | 184 | 192 | 220 | 230 | 240 | 253 | 275 | 301 | 305 | 346 | |
| P | 90 | 98 | 102 | 110 | 116 | 130 | 138 | 146 | 156 | 172 | 184 | 184 | 200 | |
| R | 45 | 52 | 63 | 80 | 102 | 122 | 138 | 148 | 160 | 182 | 200 | 225 | 250 | |
| W | 30 | 30 | 35 | 35 | 40 | 45 | 50 | 50 | 55 | 55 | 55 | 60 | 65 | |
| YP | 38 | 42 | 46 | 56 | 58 | 67 | 69 | 71 | 74 | 75 | 85 | 89 | 106 | |

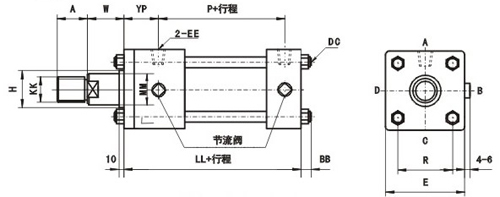

安装尺寸图：
